Choosing the right MCB Electrical Circuit Breaker is not simply a matter of matching an ampere number. The breaker must protect the cable, connected equipment, and people using the installation. A 16A device may suit a lighting circuit in one design, yet be unsafe when cable size, installation method, or ambient temperature differs. Small details matter.
A reliable selection begins with the circuit’s expected load and prospective short-circuit current. Check the rated current, trip curve, breaking capacity, pole arrangement, and voltage rating. For example, a B-curve breaker may suit many domestic resistive loads, while motors can require a different starting-current approach. Do not copy a neighbor’s panel. That shortcut often fails. The distribution board should also accept the device securely on its DIN rail, with correctly sized conductors and properly tightened terminals.
Manufacturer data and local electrical requirements deserve careful attention. Independent testing marks can support confidence, but they do not replace competent design or installation. An experienced electrician will verify coordination with upstream protection, measure or calculate fault levels, and consider heat buildup inside a crowded enclosure. A label can look correct and still conceal a poor choice. This guide explains the practical checks behind a safer decision, while acknowledging an important limitation: no general article can replace a site-specific assessment. When the circuit serves critical equipment or unfamiliar wiring, obtain professional verification before energizing it.
An MCB, or miniature circuit breaker, protects an electrical circuit from excessive current. Its main purpose is safety. It disconnects power before overheated wires damage insulation or start a fire. Unlike a fuse, an MCB can usually be reset after the fault is removed. However, resetting it repeatedly is not a repair.
Inside the device, two operating principles work together. A thermal element responds to overloads. When current remains too high, a bimetal strip bends and releases the switching mechanism.
A magnetic element reacts to sudden, very large current. During a short circuit, an electromagnet trips the breaker almost immediately.
Internal contacts separate, while an arc-control chamber helps extinguish the electrical arc. The process is fast, but not silent. You may hear a sharp click.
Choosing an MCB requires more than matching the printed current rating. Check the circuit’s normal load, conductor size, operating voltage, number of poles, and required breaking capacity. Tripping characteristics also matter because motors and transformers can create brief starting currents. A suitable rating must protect the cable, not merely keep the equipment running. A common mistake is selecting a higher rating to prevent nuisance trips. That choice may leave the wiring inadequately protected. The enclosure, temperature, and local electrical rules also deserve attention. When the installation is uncertain, a qualified electrician should test the circuit and verify the selection. Labels help, but they are not the whole answer.
Choosing an MCB starts with the required current rating, not the appliance label alone. Calculate the expected load in watts, then divide by circuit voltage. For a 3,600-watt load at 230 volts, the current is about 15.7 amps. If the load runs continuously, many installations apply a 125% factor under NFPA 70, 2023, Section 210.20(A). The result is about 19.6 amps, making a 20-amp MCB possible only when the conductor size, installation method, and local code support it. The breaker protects the wiring first. Not the appliance.
IEC 60898-1 covers household MCBs up to 125 amps, 440 volts AC, and 25 kA short-circuit capacity. These figures help define suitable equipment, but they do not replace a site calculation. Choose the number of poles by counting the conductors that require simultaneous disconnection. A single-phase line-to-neutral circuit commonly uses one pole. A line-to-line circuit generally needs two poles. Three-phase systems normally require three poles, while four-pole devices may be specified when neutral isolation is required. Check the supply arrangement carefully. A neat rule can still fail. Some projects over-specify poles, while others ignore neutral-switching requirements. IEC 60364-5-52 and the applicable national wiring rules should confirm the final selection. An electrician should also verify prospective fault current, ambient temperature, cable grouping, and the MCB’s tripping curve before installation.
Typical current ratings and pole configurations for common low-voltage circuits
Select the MCB rated current from the calculated design load, cable ampacity, installation method, and applicable electrical code. The examples show commonly used nominal ratings: 10 A for lighting, 16 A for socket circuits, 20 A for a small single-phase water heater, 32 A for a cooker, and 16 A for a three-phase motor circuit. The number of poles depends on the supply arrangement and whether neutral isolation is required: single-phase circuits commonly use 1 or 2 poles, while three-phase circuits commonly use 3 or 4 poles. Final selection must be verified by a qualified electrician.

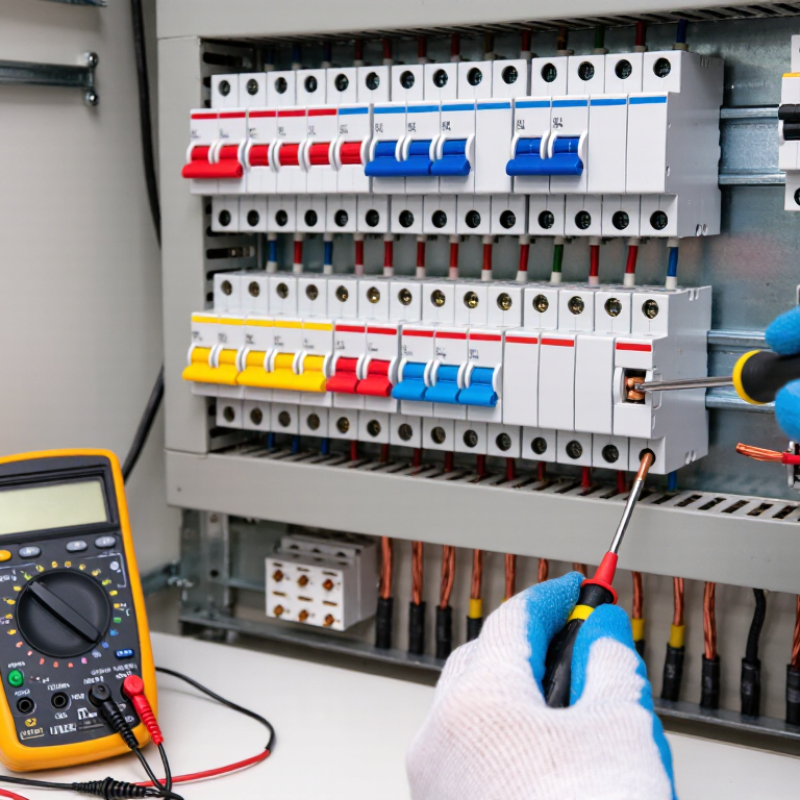

How to Choose the Right MCB Electrical Circuit Breaker
Choosing the correct trip curve and breaking capacity requires more than matching the current rating. The trip curve shows how quickly an MCB responds to overloads and short circuits. Curve B usually trips at three to five times its rated current, making it suitable for lighting and resistive loads. Curve C tolerates higher starting currents from pumps, small motors, and office equipment. Curve D handles very high inrush currents, but it should not be selected casually. In a workshop, the wrong curve can cause repeated nuisance trips. Do not choose by habit.
Breaking capacity, measured in kiloamperes, indicates the maximum prospective short-circuit current the breaker can safely interrupt. Compare this value with the calculated fault current at the installation point. A panel near a transformer may face much higher fault current than a distant lighting circuit. A 6 kA breaker is not automatically safe everywhere. A qualified electrician should verify supply impedance, upstream protection, conductor size, and local electrical requirements. Never estimate this value from the circuit load alone.
During commissioning, record the real load and observe starting behavior. A motor may trip a Curve B breaker even when its running current looks acceptable. I have seen technically compliant selections create daily frustration for users. The calculation was correct, but the operating conditions were incomplete. Leave practical margin without choosing an unnecessarily high rating. Excessive ratings can reduce protection for cables. Check terminals carefully. Loose connections create heat, damage, and unreliable operation.
| Selection Dimension | Typical Value or Requirement | What It Means | Selection Guidance |
|---|---|---|---|
| Rated Current (In) | Common ratings include 2 A, 4 A, 6 A, 10 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A and 63 A | The current the MCB can carry continuously under specified reference conditions. | Choose an In rating that is not greater than the continuous current-carrying capacity of the protected conductor. The load current should normally be below the selected In rating. |
| Trip Curve B | Instantaneous magnetic trip: 3–5 × In | Provides the most sensitive response to short-circuit current among the common B, C and D curves. | Generally suitable for resistive loads and circuits with low inrush current, such as lighting, heaters and domestic socket circuits where applicable. |
| Trip Curve C | Instantaneous magnetic trip: 5–10 × In | Allows moderate temporary inrush current before the magnetic trip operates. | A common general-purpose choice for mixed loads, small motors, fluorescent or LED driver circuits and equipment with moderate starting current. |
| Trip Curve D | Instantaneous magnetic trip: 10–20 × In | Allows high short-duration inrush current without nuisance magnetic tripping. | Use only where high starting current is expected, such as larger motors, transformers or capacitive equipment, and where the installation can provide adequate fault current for rapid disconnection. |
| Other Curves | Examples include K and Z, with ranges defined by the applicable product standard | These curves may provide specialized sensitivity or inrush tolerance. | Use them only when the equipment manufacturer, design calculation or applicable local standard specifically requires them. Do not assume their limits are identical to B, C or D curves. |
| Breaking Capacity (Icn) | 4.5 kA, 6 kA or 10 kA are common values for low-voltage MCBs | The maximum prospective short-circuit current the MCB is rated to interrupt under the applicable test conditions. | The MCB breaking capacity must be equal to or greater than the calculated prospective short-circuit current at its installation point. A higher value may be required near a transformer or service entrance. |
| Prospective Short-Circuit Current (PSCC) | Determined by the supply transformer, service impedance, conductor length, conductor size and earthing arrangement | The fault current that could flow if a short circuit occurred before protective-device impedance is considered. | Obtain the value from an electrical calculation or measurement by a qualified person. Never select breaking capacity from load current alone. |
| Poles | 1P, 1P+N, 2P, 3P or 4P, depending on the system and switching requirements | Defines which live conductors are protected and/or disconnected. | Match the pole configuration to the supply arrangement, neutral-switching requirements and local installation rules. Protective switching of the neutral must follow applicable regulations. |
| Rated Voltage | Common low-voltage systems include 230 V AC single-phase and 400 V AC three-phase | The maximum system voltage for which the MCB is designed under specified conditions. | Verify the MCB voltage rating is suitable for the circuit voltage and the number of poles. Check the manufacturer’s technical data for pole-to-pole and pole-to-neutral limits. |
| Frequency | Typically 50 Hz or 60 Hz AC | The supply frequency at which the MCB’s performance is specified. | Confirm compatibility with the electrical system, especially for installations containing non-standard frequencies or mixed AC/DC circuits. |
| Thermal Overload Protection | For IEC 60898-1 devices, conventional test limits include no tripping at 1.13 × In and tripping within the specified time at 1.45 × In | Protects conductors from sustained overcurrent by responding more slowly to moderate overloads. | Coordinate the MCB rating with the cable’s current-carrying capacity, installation method, ambient temperature and grouping factors. |
| Short-Circuit Disconnection | Magnetic instantaneous operation within the selected trip-curve range | Provides rapid disconnection during high fault currents. | Confirm that the minimum fault current at the furthest point of the circuit is sufficient to operate the MCB within the required disconnection time. |
| Standards and Compliance | IEC 60898-1 is commonly used for household and similar installations; IEC 60947-2 applies to circuit breakers with industrial characteristics | Different standards can define different ratings, tests and application conditions. | Use a device certified to the standard required by the installation, jurisdiction and equipment application. Follow the complete technical datasheet rather than relying on the curve letter alone. |
| Important: The correct MCB is selected by coordinating rated current, conductor capacity, trip curve, prospective short-circuit current, breaking capacity, voltage, poles and required disconnection time. Final selection and verification should be completed by a qualified electrical professional in accordance with applicable local regulations. | |||
Choosing an MCB starts with the actual circuit, not the label on the box. The IEA’s Buildings 2023 report states that buildings used about 30% of global final energy in 2022. That makes accurate load assessment essential. Check the circuit voltage, frequency, AC or DC supply, and number of poles. A 230 V circuit needs an MCB rated for that system, while a motor may require different tripping behavior. Do not select a higher current rating to stop nuisance trips. The cable could overheat first.
Installation method changes performance. Confirm that the MCB fits the distribution board’s DIN rail and busbar arrangement. Check terminal size, conductor cross-section, tightening torque, enclosure temperature, and available breaking capacity. IEC 60898-1 covers many domestic and similar applications, while IEC 60947-2 often applies to industrial circuit breakers. Local rules may require additional verification. NFPA’s Home Structure Fires report for 2017–2021 linked electrical distribution and lighting equipment to about 7% of reported home fires. Small details matter.
Compatibility also includes load type and protective coordination. Compare the MCB’s trip curve with lighting, socket, heating, or motor loads. Check whether upstream protection will disconnect selectively during a fault. I have seen installations judged by voltage alone; that was incomplete. A breaker may fit physically yet fail electrically. Verify prospective short-circuit current, neutral arrangement, accessory compatibility, and enclosure space with current technical documents. When measurements are uncertain, a qualified electrician should test the circuit before energizing it.
Verify the MCB’s rated voltage, current, breaking capacity, and trip curve. These values must match the circuit, not merely the distribution board. IEC 60898-1 covers many domestic and similar installations. IEC 60947-2 applies to broader industrial equipment. Check the certification file, test marks, and installation instructions. A familiar appearance proves little. NFPA’s Electrical Fires report found that electrical distribution and lighting equipment contributed to 23% of U.S. home structure fires from 2016 to 2020. That figure supports careful selection, not guesswork.
Look for reliable overload and short-circuit protection. Test whether the device provides clear ON, OFF, and tripped positions. In damp or high-risk areas, an MCB may need coordination with residual-current protection. Selective coordination also matters when several breakers protect one supply. Otherwise, one fault can disconnect more equipment than expected.
Maintenance should follow the manufacturer’s schedule and local rules. NFPA 70B identifies electrical maintenance as a managed safety practice. Inspect loose terminals, heat discoloration, dust, and repeated trips. Do not simply reset a breaker repeatedly. I have seen tidy panels hide poor torque checks. That is an uncomfortable detail, but it deserves attention.
Tips: Record circuit labels and test results. Use a calibrated torque tool. Photograph warm spots during inspections. Replace damaged devices promptly. Ask a qualified electrician to verify fault levels, conductor sizing, and coordination. Recheck the selection after a major load change; my first estimate may still be wrong.
It shows how quickly the breaker responds to overloads and short circuits. Curve choice matters.
Curve B commonly suits lighting and resistive loads. It trips at roughly three to five times its rated current.
Curve C handles higher starting currents from pumps, small motors, and office equipment. Check the actual startup behavior.
Curve D is designed for very high inrush currents. Do not choose it from habit. That can weaken practical protection.
Breaking capacity is the maximum short-circuit current the breaker can safely interrupt. It is measured in kiloamperes.
No. Compare 6 kA with the calculated fault current at the installation point. A panel near a transformer may face higher fault current.
It may stop unwanted trips, but the cable could overheat first. Check conductor size and real load instead. Bigger is not automatically safer.
Confirm voltage, frequency, AC or DC supply, poles, DIN rail fit, and busbar arrangement. Also check terminals, enclosure temperature, and tightening torque.
A motor may trip Curve B during startup, even when running current looks acceptable. Record the real load and watch the starting period.
A qualified electrician should test the circuit before energizing it. Verify fault current, cable size, neutral arrangement, and protective coordination. Some selections look correct but remain incomplete.
Choosing the right Mcb Electrical Circuit Breaker begins with understanding its purpose and operating principles. An MCB protects electrical circuits from overloads and short circuits by interrupting the current when unsafe conditions occur. To select a suitable model, determine the circuit’s normal operating current and choose an appropriate current rating with the correct number of poles for the system. The trip curve should match the expected load characteristics, while the breaking capacity must be sufficient to safely interrupt the prospective fault current.
Before installation, confirm the required voltage, mounting method, and compatibility with the distribution board and connected equipment. It is also important to verify that the breaker meets applicable safety standards and includes suitable protection features. Regular inspection, secure connections, and proper maintenance help preserve reliable performance. Careful selection ensures effective circuit protection, reduces unnecessary tripping, and supports a safer, more stable electrical installation.
